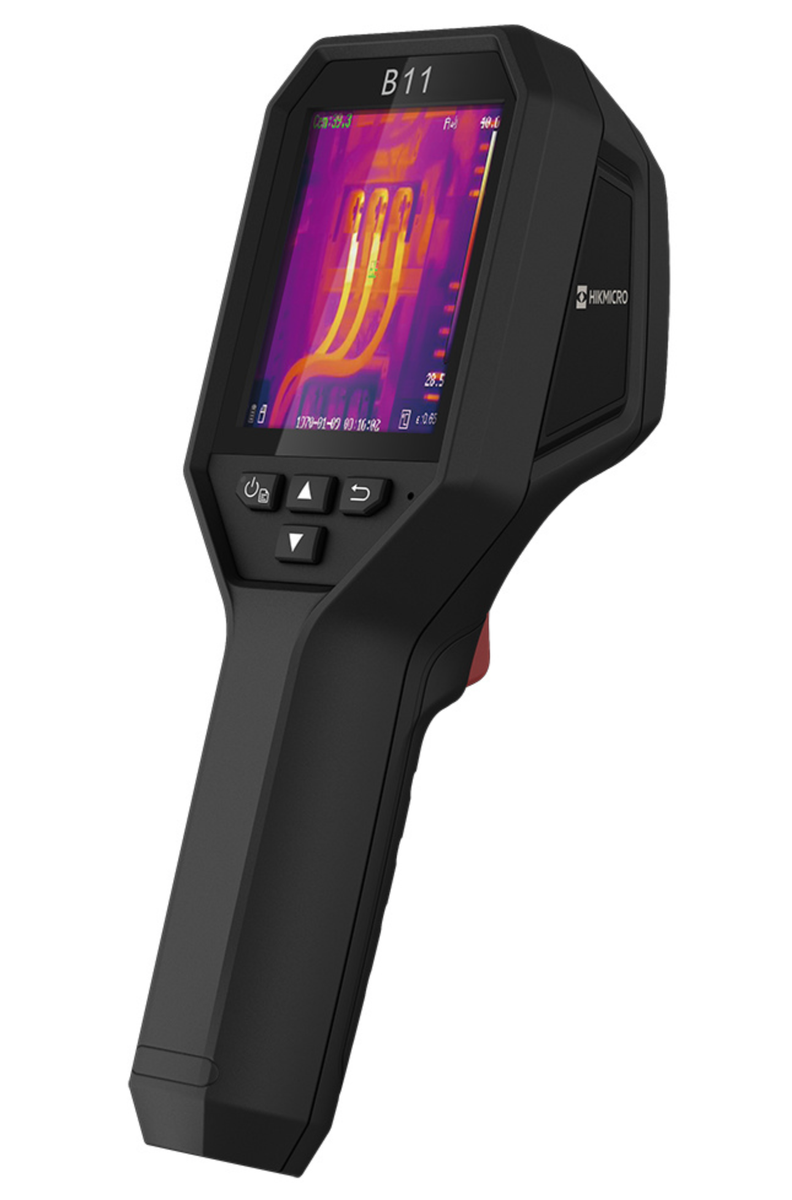

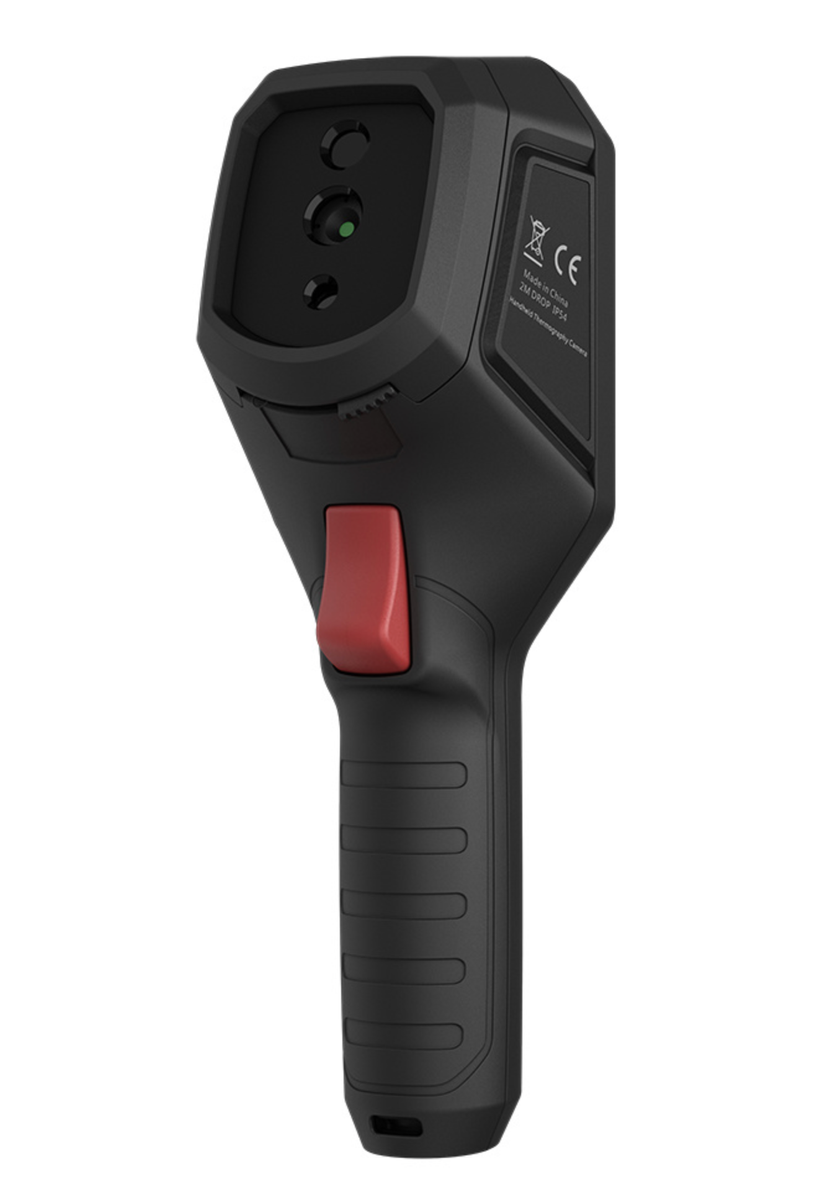

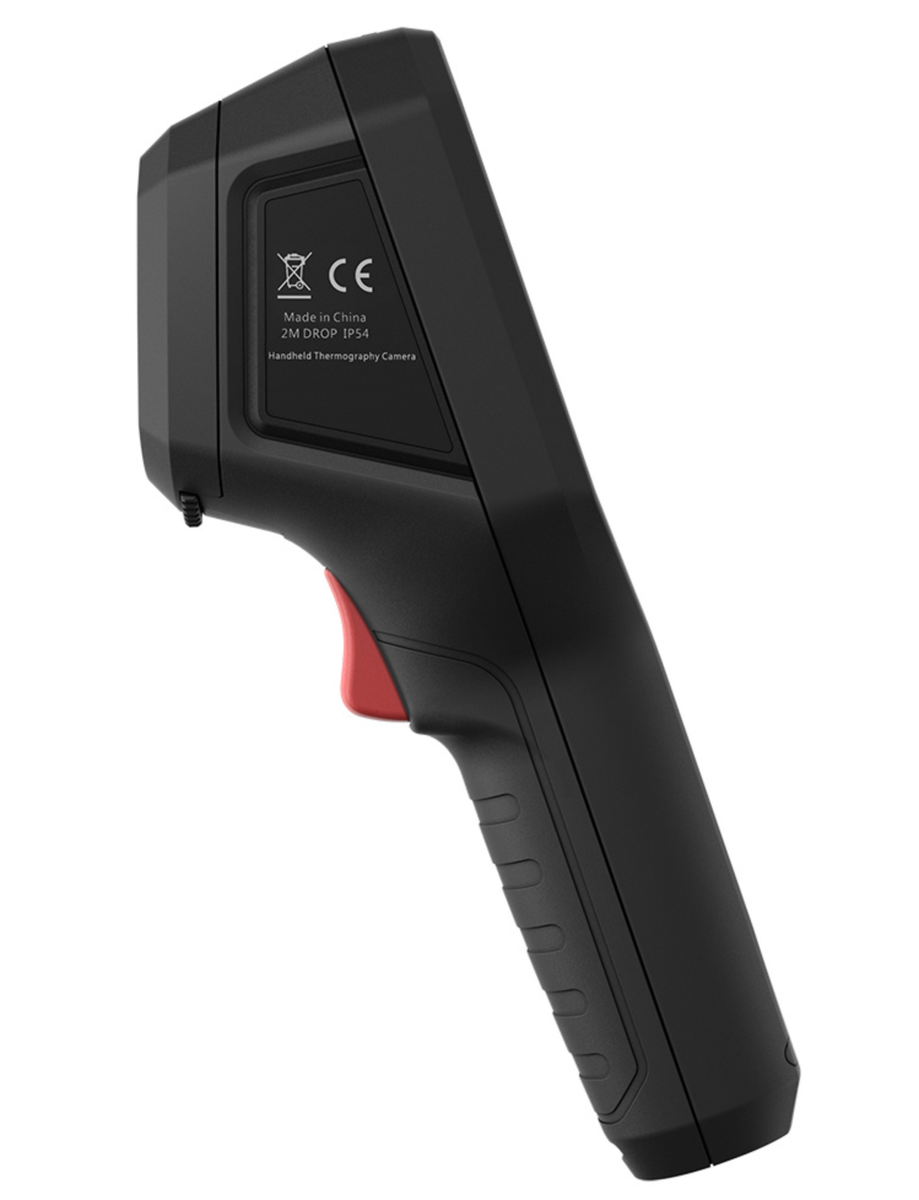

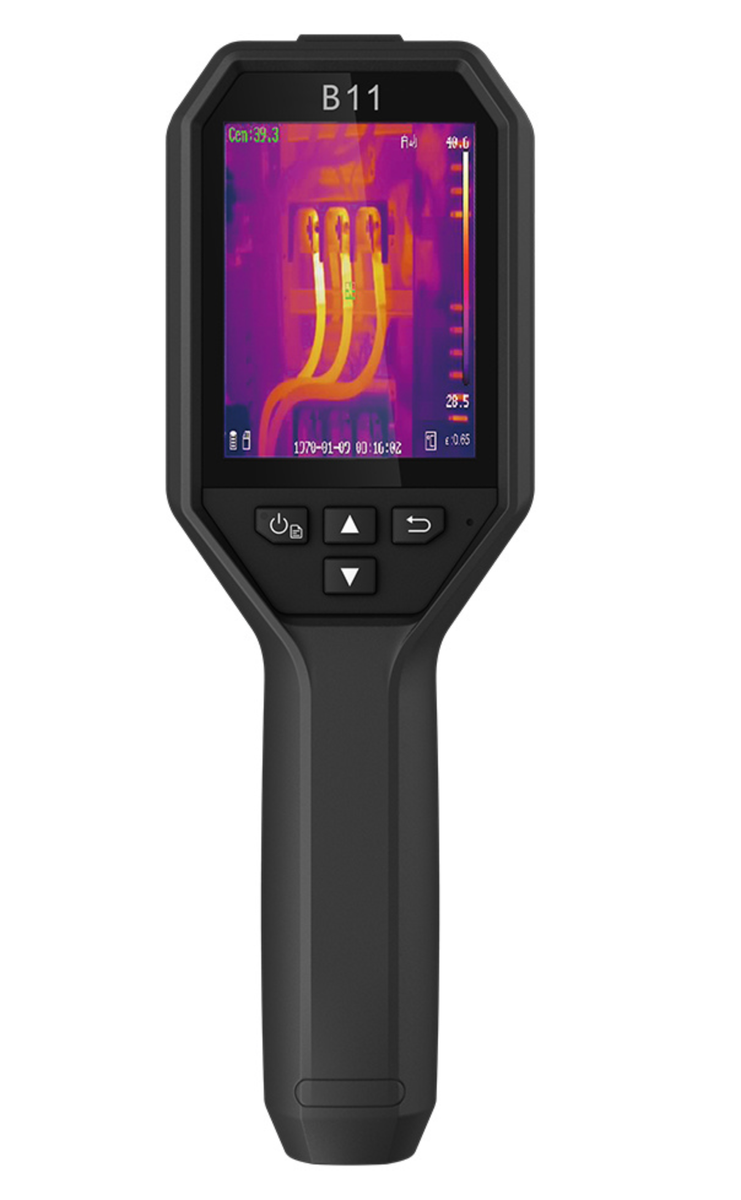

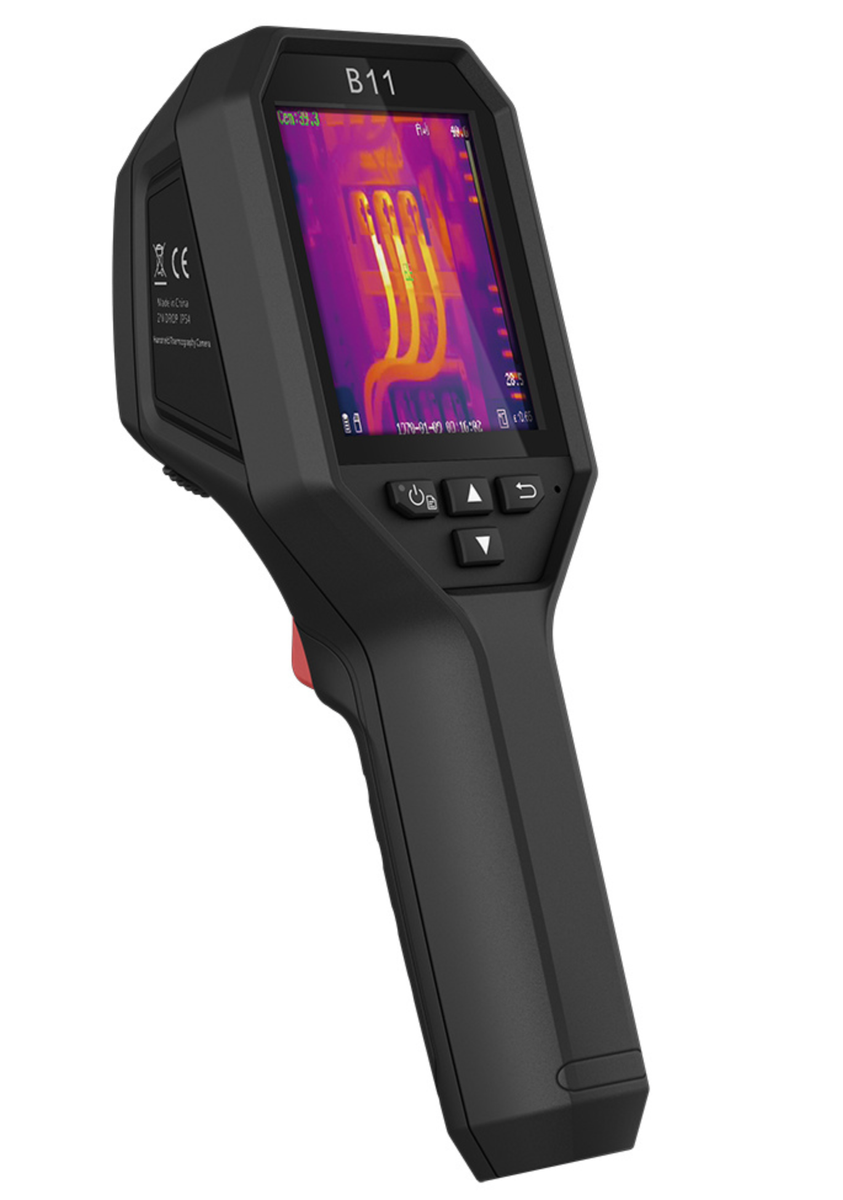

HIKMICRO - B11 Thermal Imaging Camera



or 4 interest free payments of $229.72 withlearn more


  • IR Resolution 192 × 144 (27,648 pixels)
  • NETD < 40 mK (@ 25 °C, F#=1.0)
  • Image Frequency 25 Hz
  • Detector Pitch 12 μm
  • Spectral Range 7.5 to 14 μm
  • Focal Length 3.6 mm
  • F-number F1.0
  • Field of View (FOV) 27.8° × 37.2°
  • Spatial Resolution (IFOV) 3.3 mrad
  • Focus Mode: Focus Free

HIKMICRO B11 is designed for temperature measurement to find invisible faults. It’s equipped with a 192 × 144 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F), which meets most situations.

It helps the staff to quickly find the fault according to accurate temperature measurements of high- temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.

Backed by an industry leading 3 year warranty.

backed by an industry leading 3 year warranty

SKU: B11
